The following is a chart of potential carburetor problems and possible remedies. This chart is intended to be a helpful guide when troubleshooting your carburetor. Each incident varies in accordance to individual use. Regular inspection of carburetor parts is recommended.
Solex Carburetor Rebuild
Always consult your owner’s manual for specific Carburetor tuning and recommendations.
Check float shaft for wear and float for leaks or dents
Mikuni Performance Automotive Carburetors - Mikuni 40 PHH / 44 PHH / 50 PHH Carburetor - Genuine Mikuni Replacement Parts and Jets. This is a copy of the original Mikuni PHH Carburetor Service Manual, with permission from Mikuni American Corporation. Some Solex 40 PHH carburetors use Mikuni 44 PHH parts. Please be sure to compare.
Bobcat 642 Solex Mikuni Carburetor
| PROBLEM | POSSIBLE SOLUTION |
| Examine idle and main mixture adjustment screws and O-Rings for cracks and damage. |
| Adjust main mixture adjustment screw; some models require finger tight adjustment |
| Adjust idle mixture screw |
| Check for bent choke and throttle plates |
| Adjust control cable or linage, to assure full choke and carburetor control |
| Clean carburetor after removing all non-metallic parts that are serviceable. |
| Check inlet needle and seat for condition and proper installation |
| Check sealing of welch plugs, caps, plugs and gaskets |
| Adjust governor linkage < |
| Adjust float settings if float type carburetor |
| |
| Check diaphragm for cracks or distortion and check nylon check ball for function if available |
| Check sequence of gaskets and diaphragms for the particular carburetor being repaired |
Jack’s Safety Tips: Before servicing or repairing any power equipment, disconnect the spark plug and battery cables.
Remember to wear appropriate safety glasses and gloves to protect against harmful chemicals and debris. View our Disclaimer.
This page lists many of our carburetor owner's and tuning manuals. NOTE: When you click on one of the manuals in this list, Adobe Reader will load and proceed to download the chosen manual. This could take some time on slow connections as some of the manuals are rather large. Mikuni American Corporation All Right Reserved. SCAT VW Carburetor 130 Solex Main Jet $ 6.00 Part Number: 11075/130 Add to cart SCAT VW Carburetor 140 Solex Main Jet $ 6.00 Part Number: 11075/140 Add to cart SCAT VW Carburetor 160 Solex Main Jet $ 6.00 Part Number: 11075/160 Add to cart SCAT VW Carburetor 170 Solex Main Jet. I think this is a Mikuni Solex Dual Port 28-32 DIDTA Carburetor. Another one is currently fitted on a 4G32 engine in a Mitsubishi Celeste.
Featured Parts and Products:
Related Posts
The A to Z of Small Engine Carburetors →

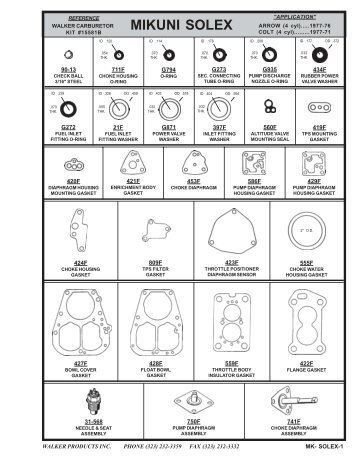

REFERENCE WALKER CARBURETOR KIT #15581B
